Lufasa 18650 Battery Capacity Tester Ah Display Module 9999mAh for 1.2V-12V Battery

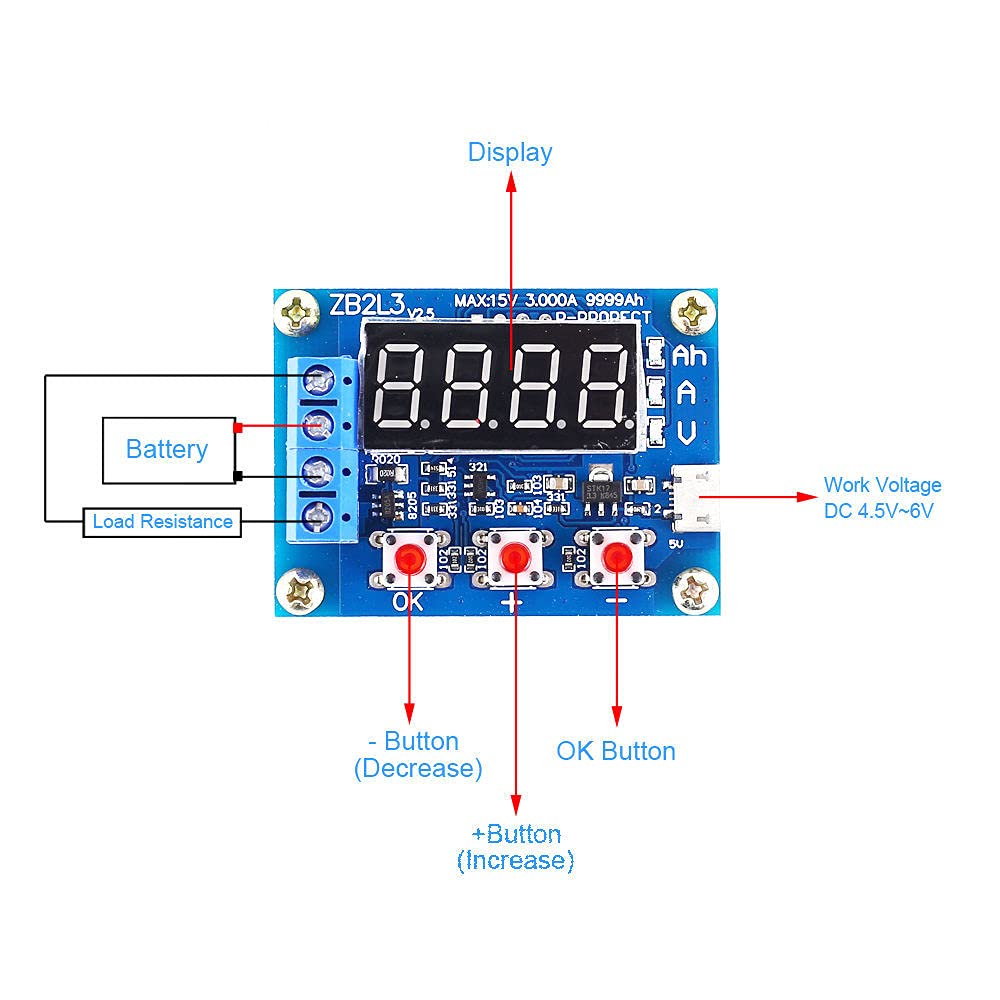

1.Descriptions: It is a battery capacity display module.It can be used to measure the voltage of a battery. 2.Feature: 1>.Digital display 2>.High-strength power interface 3>.High-quality load resistance 3.Parameter: 1>.Product Name:Battery Capacity Tester Module 2>.Work Voltage:DC 4.5V~6V(micro USB interface) 3>.Working Current:70mA(MAX) 4>.Discharge Voltage:1V~15V 5>.Voltage Resolution:0.1V 6>.Termination Voltage Range:0.5V~11.0V 7>.Support Through Current:3A(MAX) 8>.Current Resolution:0.001A 9>.Work Temperature:-25℃~85℃ 10>.Work Humidity:5%~95%RH 11>.Size:50*37.5*16.5mm 4.Instructions: 1>.The tested battery should be fully charged first. 2>.Connect the positive terminal of the battery under test to the positive input terminal and the negative terminal to the negative input terminal.Do not connect them inversely (connecting them with a load in the opposite direction may damage the circuit). 3>.Connect the load to the positive output terminal and the negative output terminal,and supply power to the tester micro USB (not available from desktop or laptop USB).At this time, the battery voltage is displayed. 4>.To start the test directly, just press the "OK" Button.The tester can automatically set the appropriate termination voltage according to the full charge voltage of the battery,and it will start flashing after 3 flashes. 5>.You need to manually set the termination v
